PT. Multi Sarana Gitatama offers various length, thickness, width and height of high quality and excellent craftmanship steel sheet piles. The steel sheet piles come in U-Type and Box-Type sections.
The list of steel sheet piles are not exhaustive. Please contact us for more information.
1.
U-Type Section
| Product Code |
Dimensions |
Unit Weight |
Moment of Inertia |
Section Modulus |
| W |
H |
t |
Per Pile |
Per Wall Width |
Per Pile |
Per Wall Width |
Per Pile |
Per Wall Width |
| mm |
mm |
mm |
kg/m |
kg/m2 |
cm4/m |
cm2 |
cm3 |
cm2/m |
| KWSP-II |
400 |
100 |
10.5 |
48.0 |
120 |
1,240 |
8,740 |
152 |
874 |
| KWSP-III |
400 |
125 |
13.0 |
60.0 |
150 |
2,220 |
16,800 |
223 |
1,340 |
| KWSP-IIIA |
400 |
150 |
13.1 |
58.4 |
146 |
2,790 |
22,800 |
250 |
1,520 |
| KWSP-IV |
400 |
175 |
15.5 |
76.1 |
190 |
4,670 |
36,600 |
362 |
2,270 |
2.

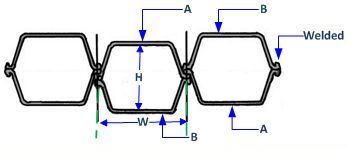

Box-Type Section
| Product Code |
Section Number |
Dimension |
Section Area |
Moment of Inertia |
Section Area |
| A |
B |
W |
H |
| mm |
mm |
cm2 |
cm4 |
cm3 |
| KBSP-II |
KWSP-II |
KWSP-II |
400 |
244 |
122.4 |
10,600 |
869 |
| KBSP-III |
KWSP-III |
KWSP-III |
400 |
297 |
152.8 |
19,600 |
1,320 |
| KBSP-IIIA |
KWSP-IIIA |
KWSP-IIIA |
400 |
340 |
148.8 |
24,300 |
1,430 |
| KBSP-IIIA |
KWSP-IIIA |
KWSP-IIIA |
400 |
340 |
148.8 |
24,300 |
1,430 |
| KBSP-IV |
KWSP-IV |
KWSP-IV |
400 |
387 |
194.0 |
41,600 |
2,150 |
