PT. Multi Sarana Gitatama offers various types of durable and high-tension form-works equipments and materials, such as form-tie, wall-tie and washers.
The list of various form-system equipments are not exhaustive. Please contact us for more information.

1.  Form Tie B
Form tie with both sides are exposed.

Form Tie B Sample
Parts Quantity
(pcs)
Inner Unit Diameter
Form Tie with a nut 2 W 5/16 . W 3/8
Inner Unit B 1 W 5/16 . W 3/8
Plastic Cone 2 W 5/16 . W 3/8
Flat Rib Washer 2 Common

Form Tie B Rod with Nut
Product Code Description L1
(mm)
L2
(mm)
Remarks
FTC-1 Form Tie with a Nut (Common for B, C and BC) 310 145
diameter1 = W 5/16
= W 3/8


diameter2 = W 1/2


250 145
180 95
150 95
Form Tie B Wall Thickness
Product Code Description
FTIB-1 Inner Unit Form B.

Both sides exposed.
W 5/16 . W 3/8


2.  Form Tie BC
Form tie with one side is finished and the other side is exposed.

Form Tie BC Sample
Parts Quantity
(pcs)
Inner Unit Diameter
Form Tie with a nut 2 W 5/16
Inner Unit BC 1 W 5/16
Plastic Cone 2 W 5/16
Flat Rib Washer 2 Common

Form Tie BC Rod with Nut
Product Code Description L1
(mm)
L2
(mm)
Remarks
FTC-1 Form Tie with a Nut (Common for B, C and BC) 310 145
diameter1 = W 5/16
= W 3/8


diameter2 = W 1/2


250 145
180 95
150 95
Form Tie BC Wall Thickness
Product Code Description
FTIBC-1 Inner Unit Form BC.

One side finished and the other exposed
W 5/16


3.  Form Tie C
Form tie with both sides are finished.

Form Tie C Sample
Parts Quantity
(pcs)
Inner Unit Diameter
Form Tie with a nut 2 W 5/16
Inner Unit C 1 W 5/16
Plastic Cone 2 W 5/16 . W 3/8

Form Tie B Rod with Nut
Product Code Description L1
(mm)
L2
(mm)
Remarks
FTC-1 Form Tie with a Nut (Common for B, C and BC) 310 145
diameter1 = W 5/16
= W 3/8


diameter2 = W 1/2


250 145
180 95
150 95
Form Tie C Wall Thickness
Product Code Description
FTIC-1 Inner Unit Form C.

Both sides finished.
W 5/16


4.  Form Tie D
Form tie with both sides are exposed.

Form Tie D Sample
Parts Quantity
(pcs)
Inner Unit Diameter
Form Tie D with a nut 2 W 1/2
Inner Unit D 1 1/2
Plastic Cone D 2 1/2
Flat Rib Washer 2 Common

Form Tie D Rod with Nut
Product Code Description L1
(mm)
L2
(mm)
L3
(mm)
Remarks
FTD-1 Form Tie D 360 120 80 diameter1 = W 1/2
300 120 80
250 120 80
Form Tie D Wall Thickness
Product Code Description
FTID-1 Inner Unit Form D.

Both sides exposed.
W 1/2.

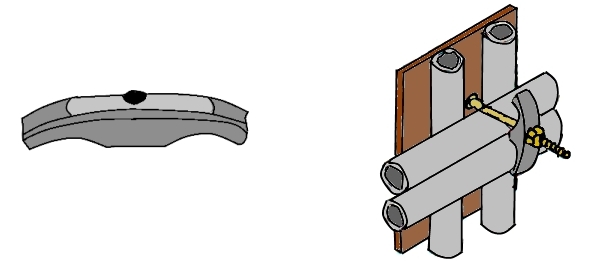

5.  Round Pipe Batter / Washer
Round pipe batters/washers are available for various diameter of round pipes.

Round Pipe Washer, Rib Washer

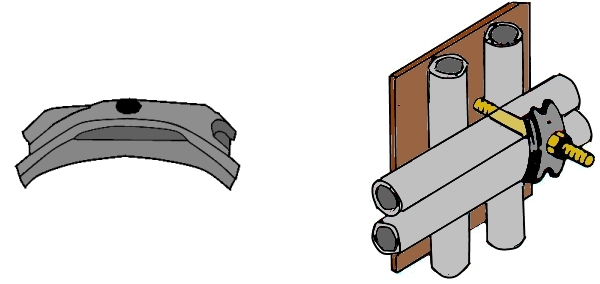

6.  Round Pipe Batter / Washer Type D
Round pipe batters/washers type D are available for various diameter of round pipes.

Round Pipe Washer, Washer Type D

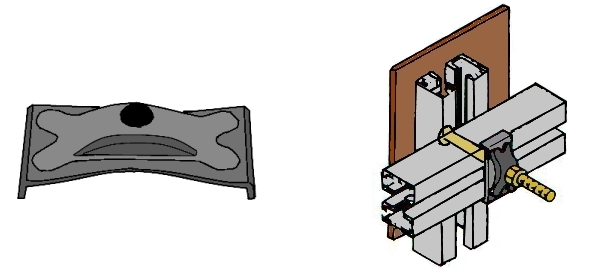

7.  Square Pipe Batter / Washer
Square pipe batters/washers are available for various thickness of pipes.

Square Pipe Washer

8.  Wall Tie
Expandabled mechanical wall-tie with universal clamps (42.7 - 48.6).

Mechanical Wall Tie
Product Code Description
WA-01 3

9.  Plastic Formwork Plate
Plastic Formwork Plate provides a strong, light-weight, impact resistance and rust-free formwork panel. The Plastic Formwork Plate can withstand -10 to 75 degree Celcius temperature and high pressure. The Plastic Formwork Plate is durable and could be re-used many times.

Plastic Formwork Plate
Product Code Length Width Thickness
PFP-1212 1,220 2,440 12
PFP-1215 1,220 2,440 15
PFP-1812 1,830 915 12
PFP-1815 1,830 915 15

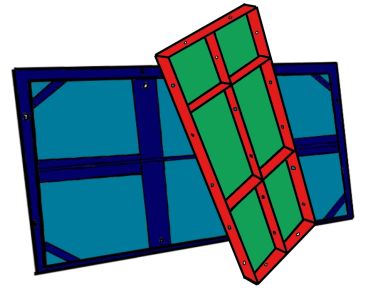

10.  Steel Panel for Plastic Formwork Plate
The Steel Panel for Plastic Formwork Plate provides support for Plastic Formwork Plate and allows multiple panels to be connected and inter-locked.
To order, please specify the dimension (length, width and thickness) and the lock-key-hole specifications.

Form Work Panel
